JBL | StageA3001 6×8 / 5×7″ Coaxial Speaker

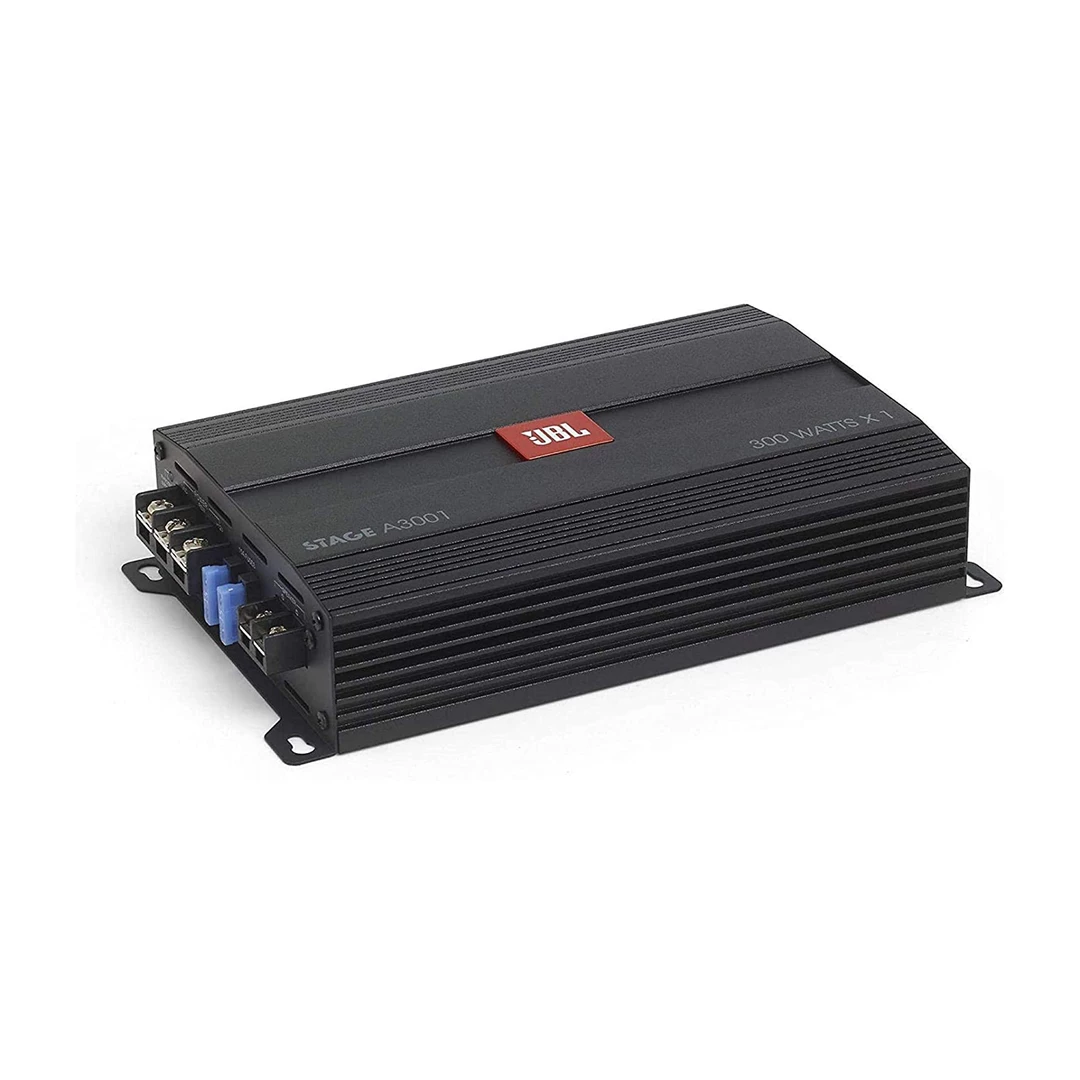

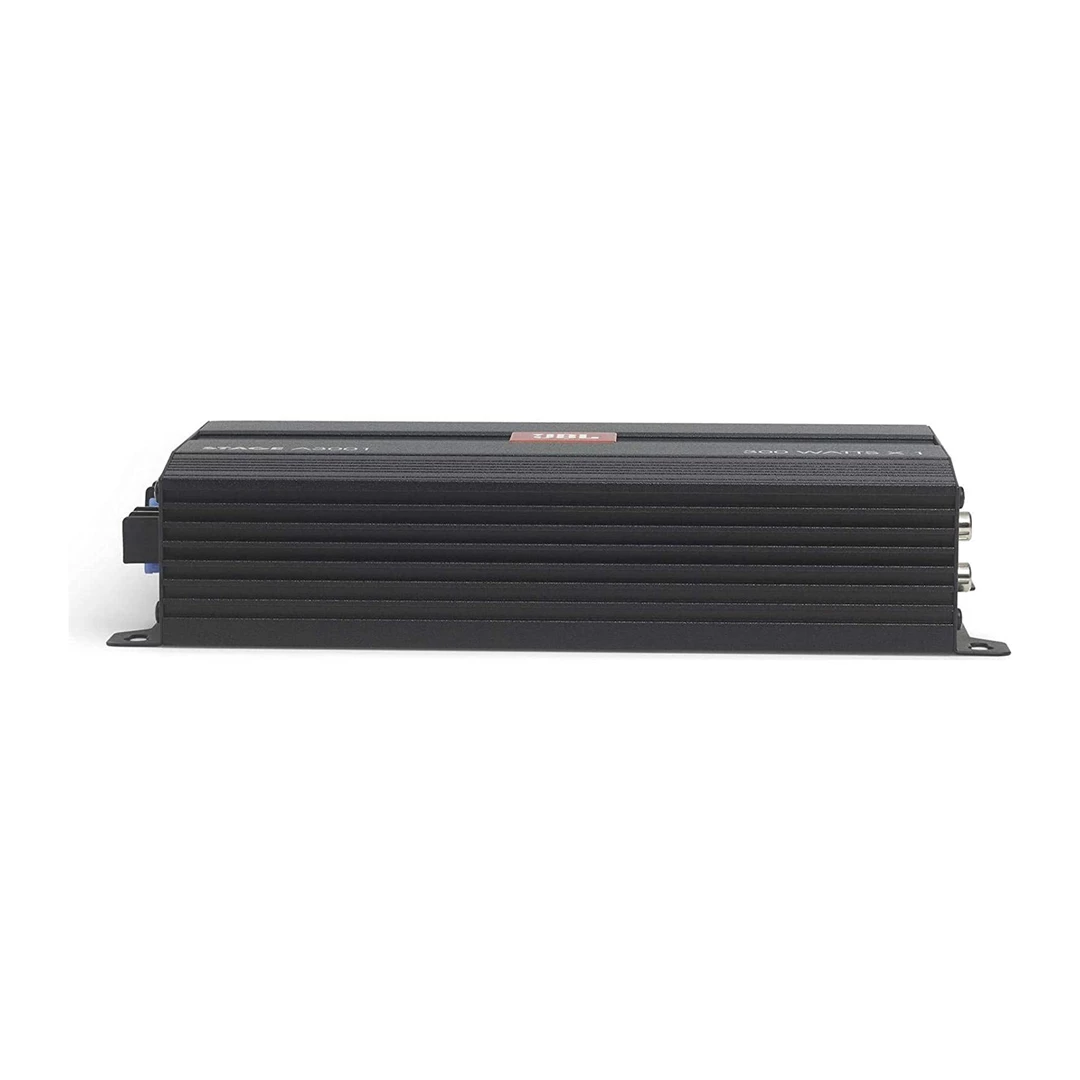

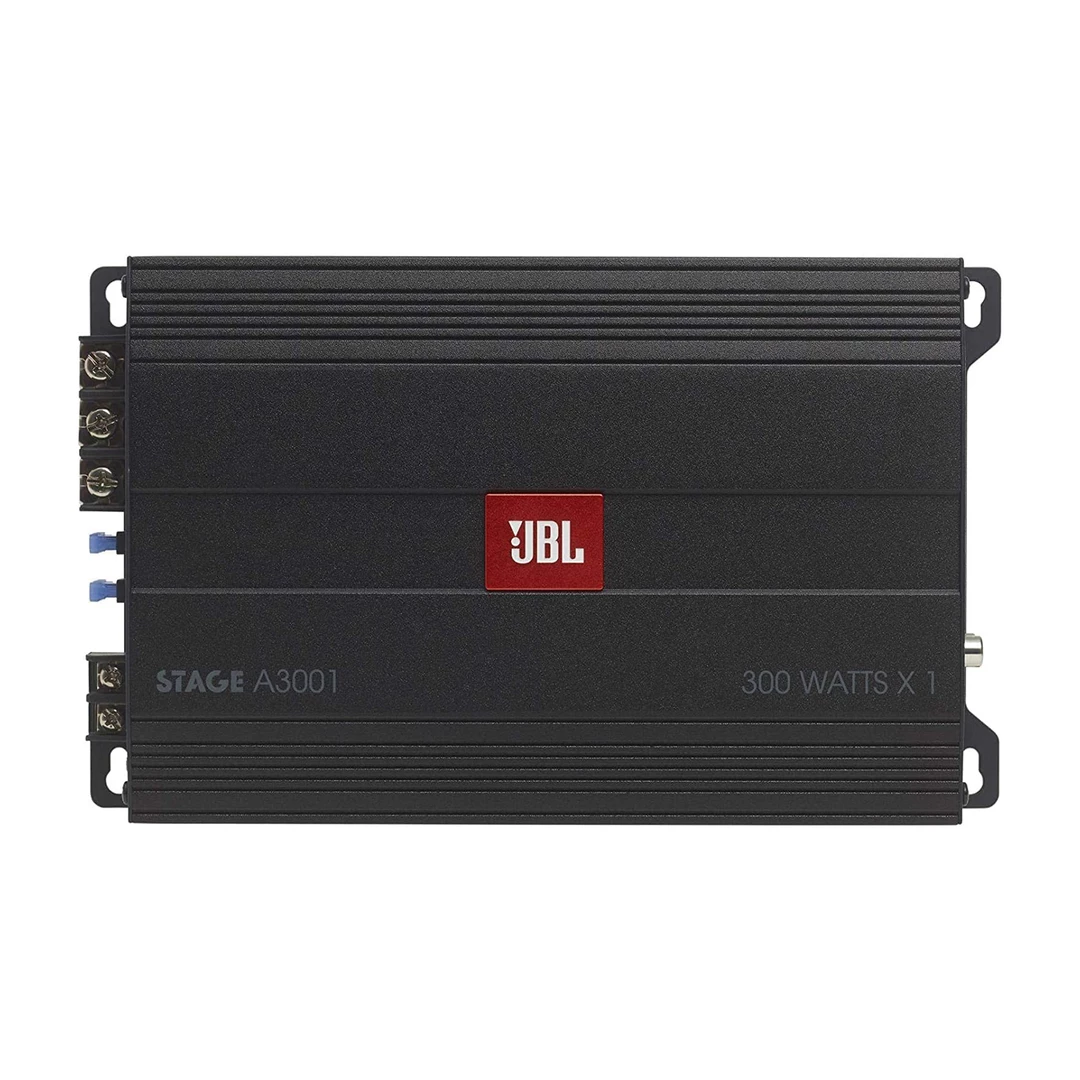

Stage A3001 monoblock power amplifier, 1 channel amplifier. This 1-channel compact amplifier is equipped with the most important functions, including a bass EQ and LPF controls to adjust the sound to your vehicle. For easy connection, the existing high and low level input (RCA) can be used. The maximum power of this 1-channel power amplifier is 600 W and therefore it also has enough power for demanding car speakers and subwoofers. Powerful mono amplifier for your vehicle.

Features:

• Operating voltage: 9 – 16 V.
• RMS power @ 2 ohms: 1x 300 watts.
• Total peak power: 1 x 600 watts.

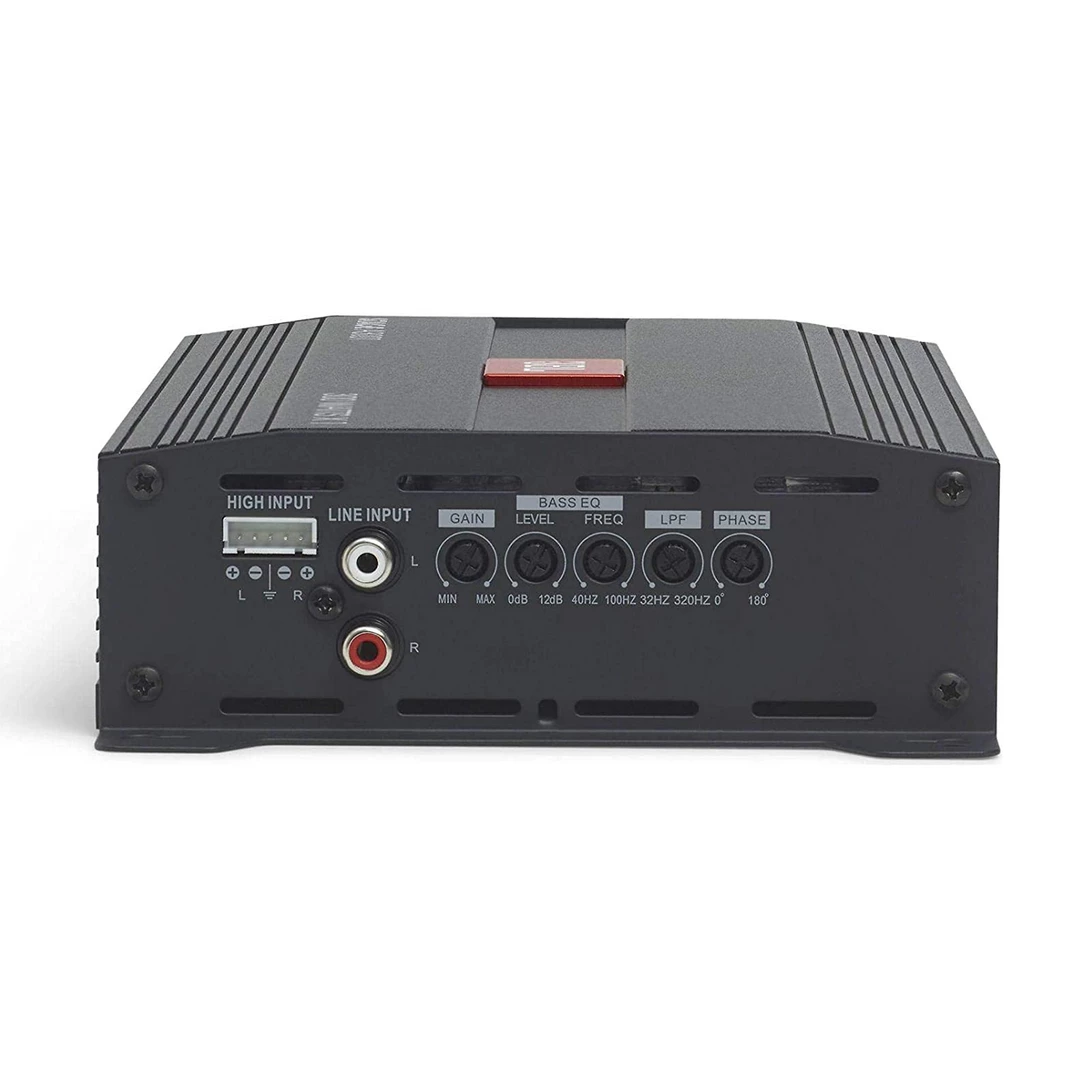

• Bass EQ: bass amplification 40 – 100 Hz from 0 dB to 12 dB
• Low pass filter: 32 – 320 Hz
• Phase correction: 0° – 180°.
• Frequency range: 10Hz – 320Hz @ -3dB
• THD + N at rated power (20Hz): <1%.
• Signal to noise ratio (at 1 watt): >75 dB.
• High-IN maximum input signal level: 12 V.
• High-IN lowest input signal level: 0.5 V.
• Line-in maximum input signal level: 5 V.
• Line-in lowest input signal level: 0.2 V.
• Standby current consumption: <1.5 A.

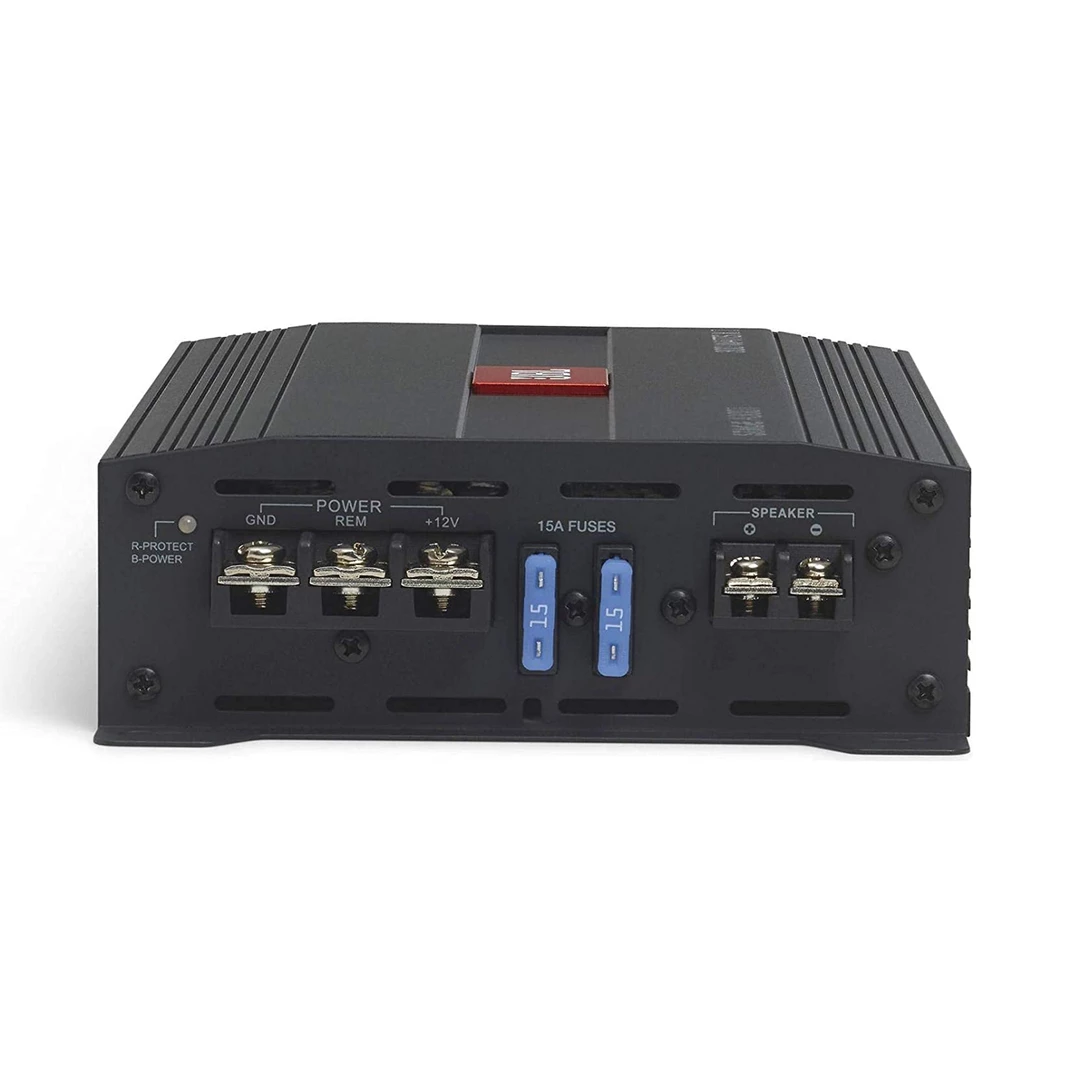

• Fuse value: 2 x 15 A.
• Dimensions (H x L x D): 50 x 145 x 241.6 mm.
• Weight: 1.609 kg.
