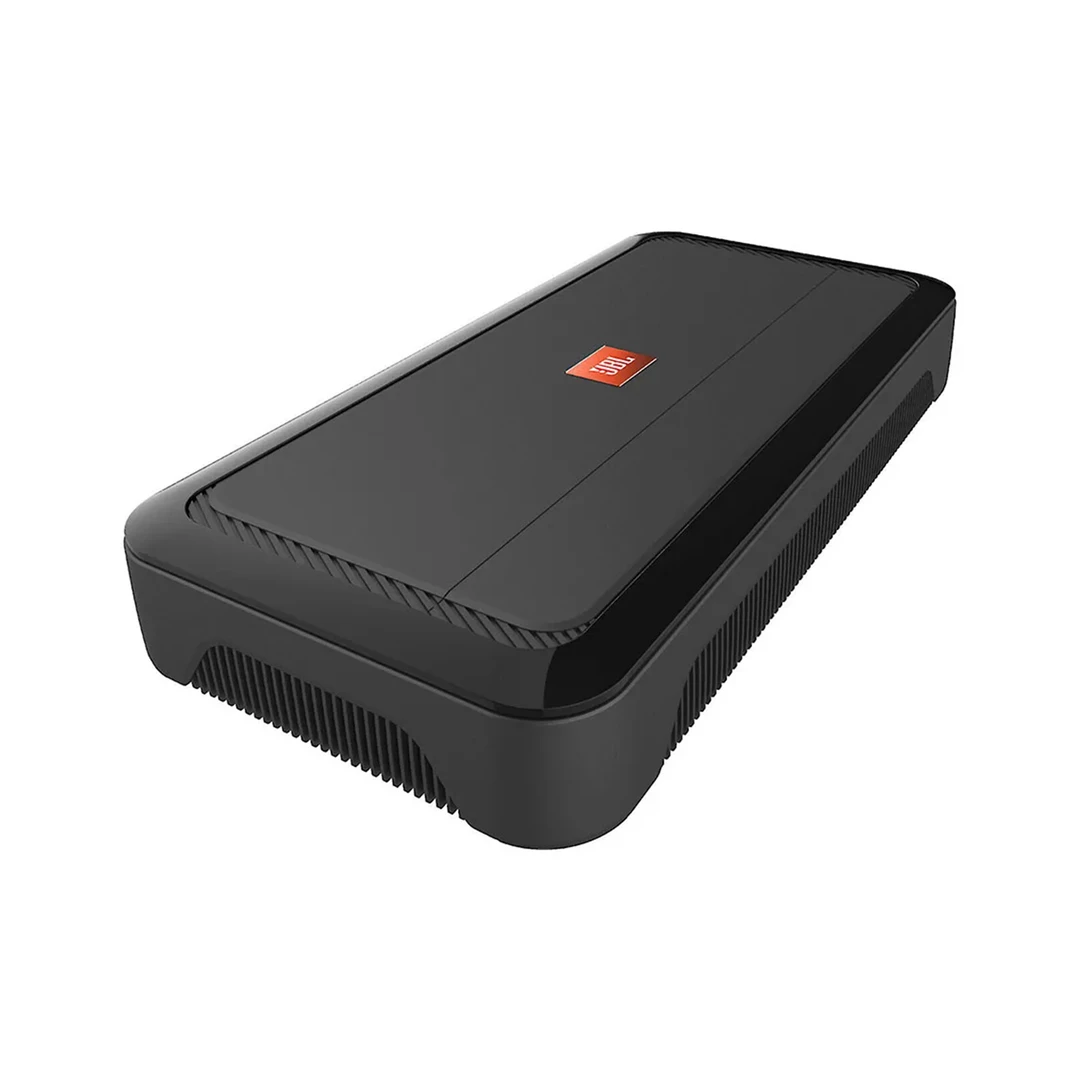

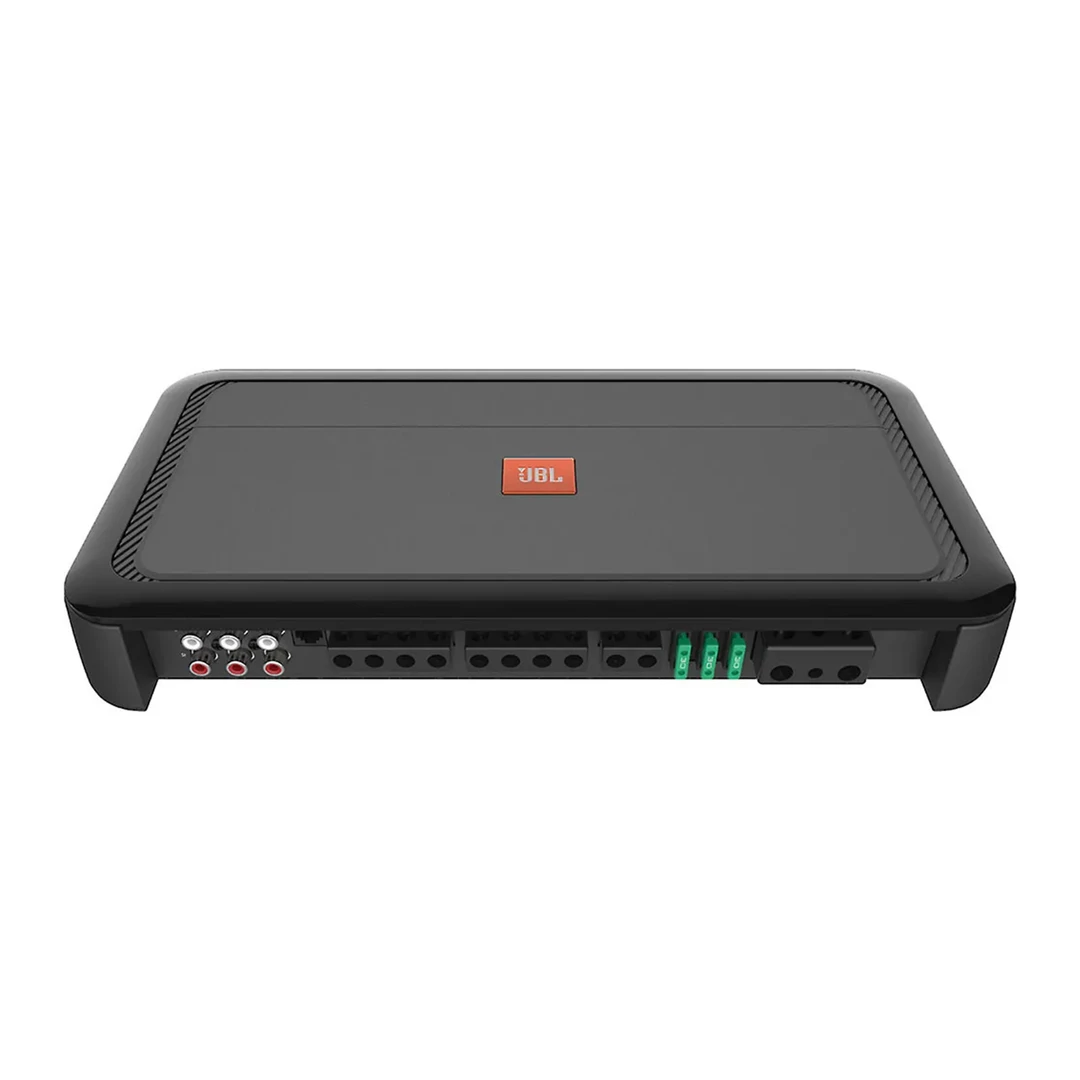

JBL | CLUBA5055 5-Channel Car Amplifier

The Club A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your car, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car’s factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance.

Features:

• 5 channel car amplifier
• 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
• 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
• 140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohm
• Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
• Low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel
• Bass boost on subwoofer channel (0-12dB at 45Hz)
• Phase switch on subwoofer channel (0, 180 degrees)

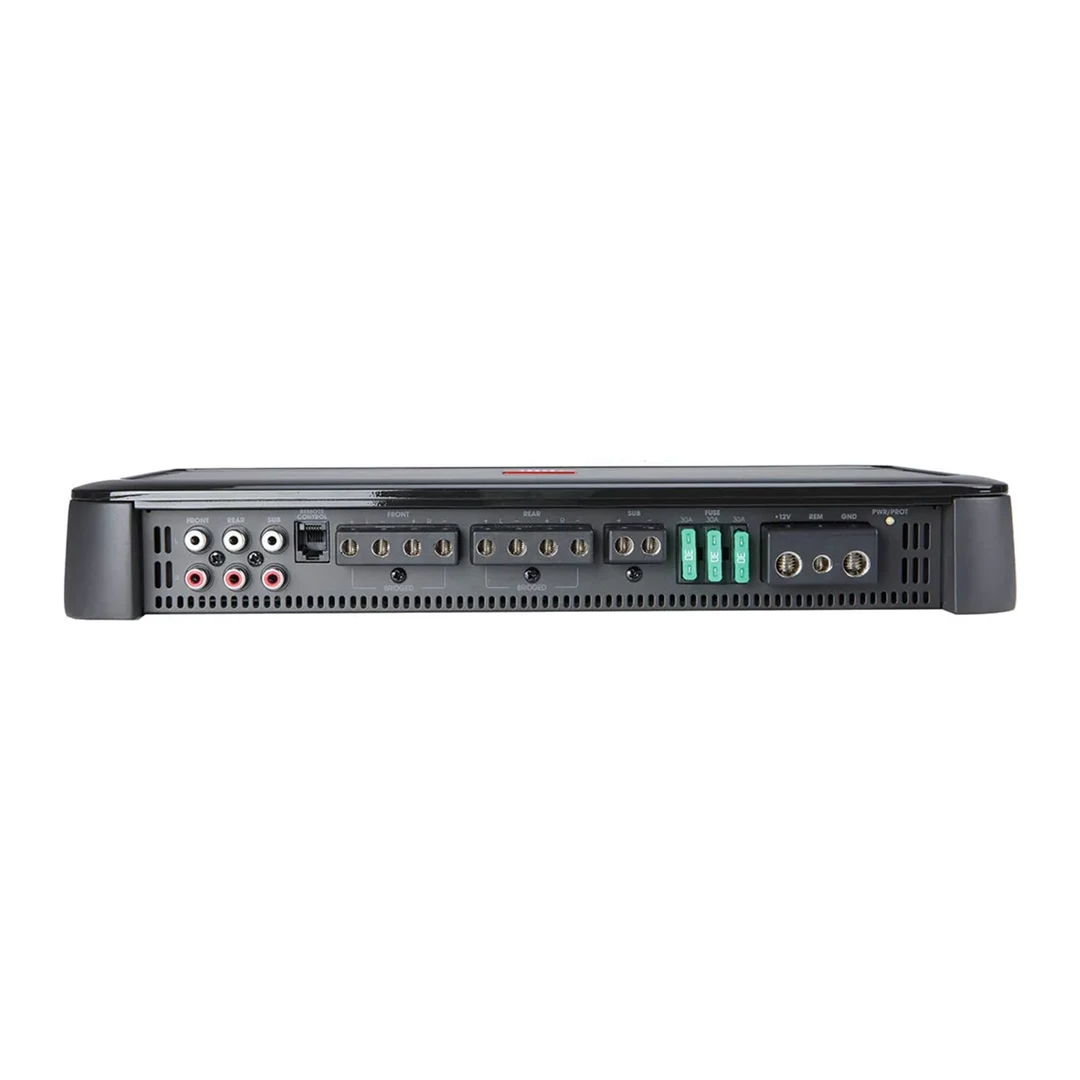

• Preamp and speaker-level inputs
• Fuse rating 30A x 3
• 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• WxHxD=360mm x 51.3mm x 180mm WxHxD=14-3/16” x 2-1/16″ x7-1/8”



Included:

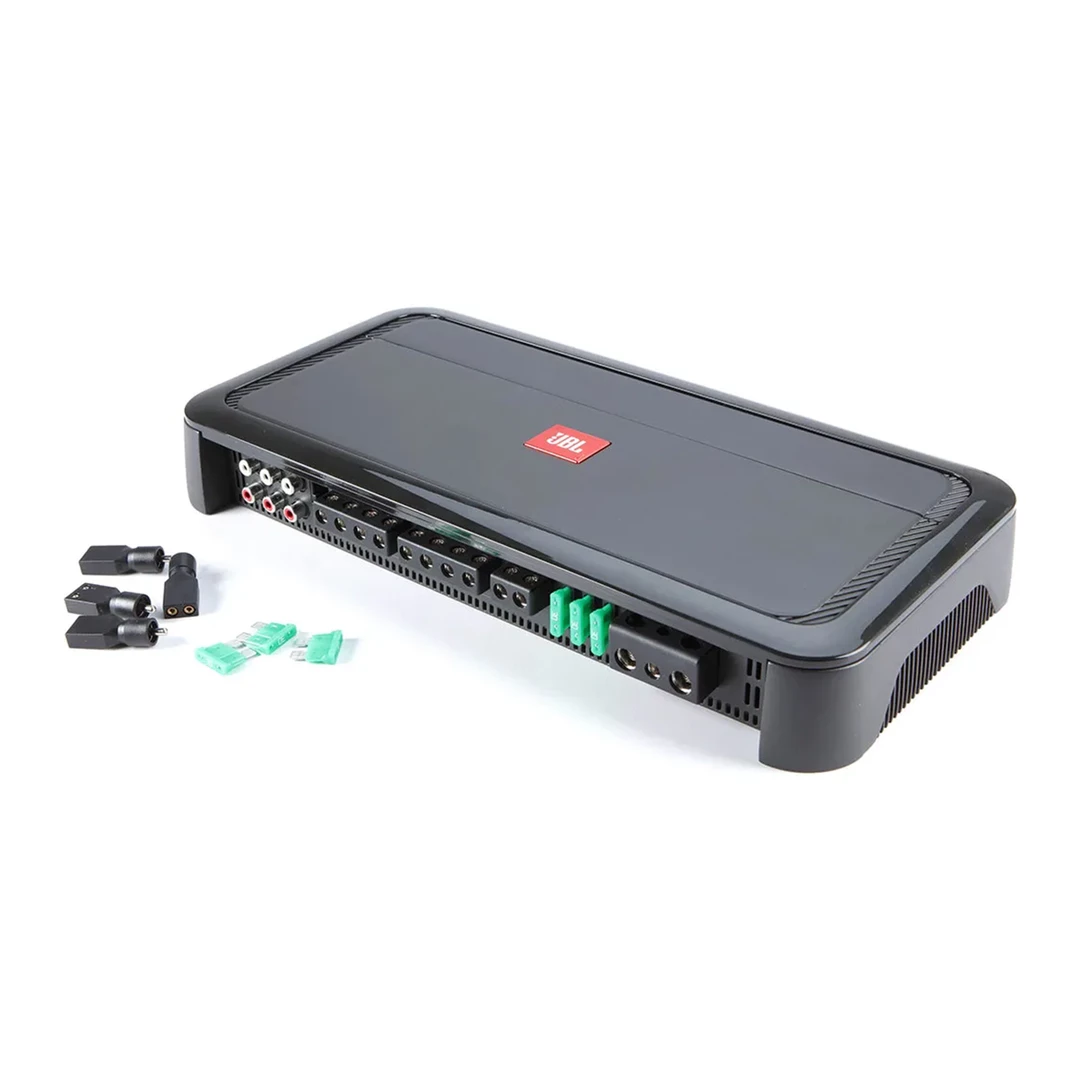

• One Club A5055 five channel amplifier
• 4 Bare wire-to-RCA adapters
• Six 30A ATO fuses (3 installed, 3 spare)

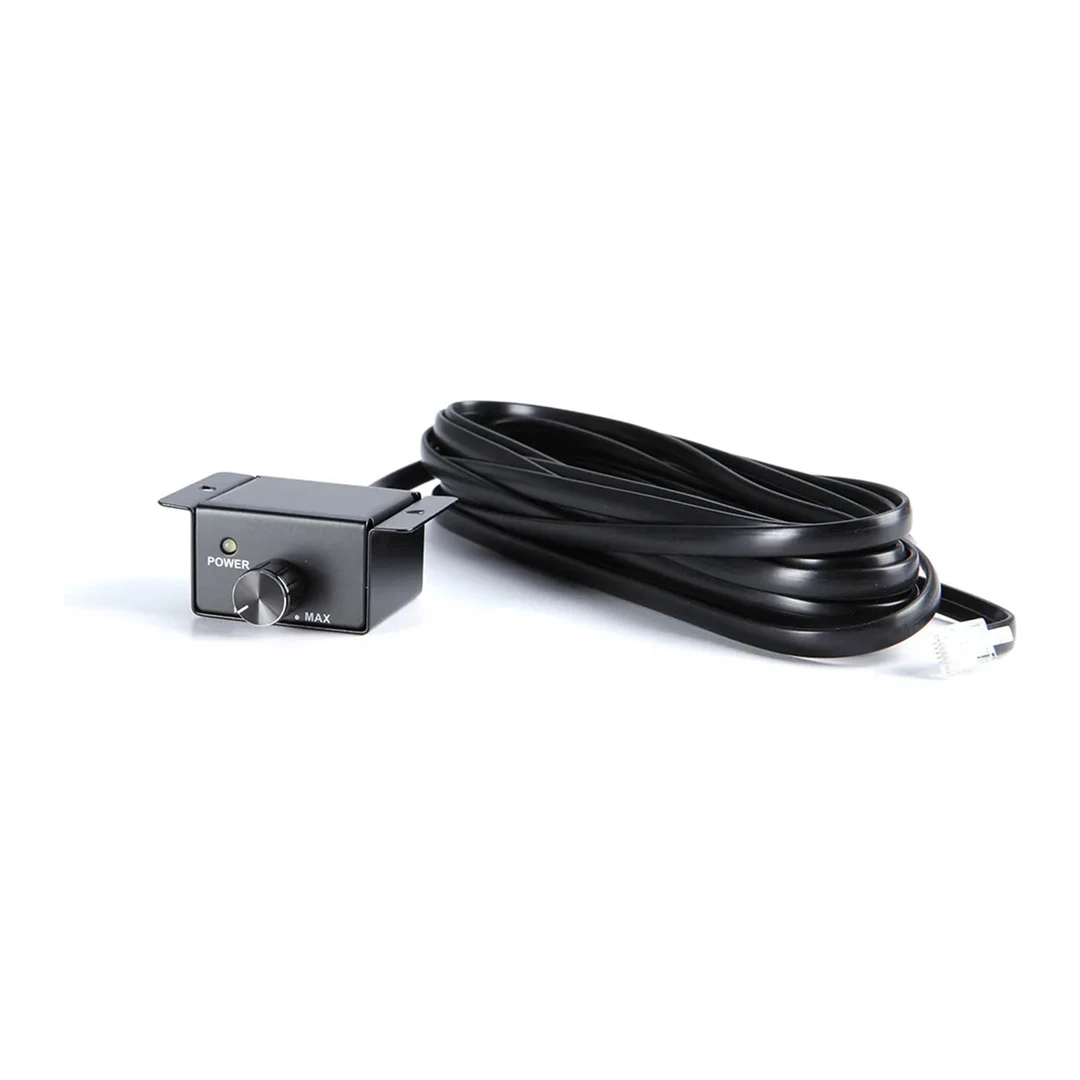

• Remote bass control module
• 16.5′ Remote control cable (RJ-25 plugs on both ends)
• 2 Self-tapping screws for remote (M3 x 15mm)
• 4 Mounting screws (M4 x 53mm)
• Owner’s Manual
